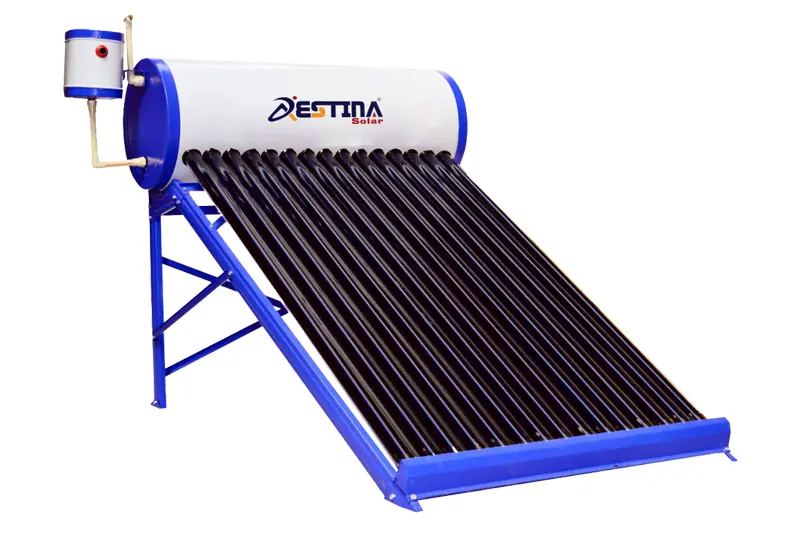

ETC Ceramic Coated Model
| Tube Size | 58 - 1800 mm(100L 300L) |
| Tube Size | 58 - 210 mm (500L) |
| Inner Tank Material | Hot Rolled Steel with Ceramic Coated |
| Tank Diameter | 550 mm(500L) |
| Tank Volume | 100L - 500 Ltrs |
| Outer Tank Material | Powder Coated / Stainless Steel |
| Tank Insulation | PUF 50 MM |
| Method of Bonding | Mig Welding Technology |
| Typo of Grommets | Silicon Washers |
| Type of Circulation | Thermosyphon |
| Type of Collector | ETC |
| Specification | 58 - 2100 mm |
| Frame Angel | 27 Degrees |
| Inner Tank Materials | Enamel Steel of 2mm with Glass Lined Coating |
| Inner Dish | 2.5mm |
| Outer Dish | Aluminium with Powder Coated |
| Insulation | 50mm High Quality PUF Materials |
| Outer Tank | Powder Coated / Stainless Steel |
| Tank Volume | 110L -165L - 200L - 220 Ltrs |

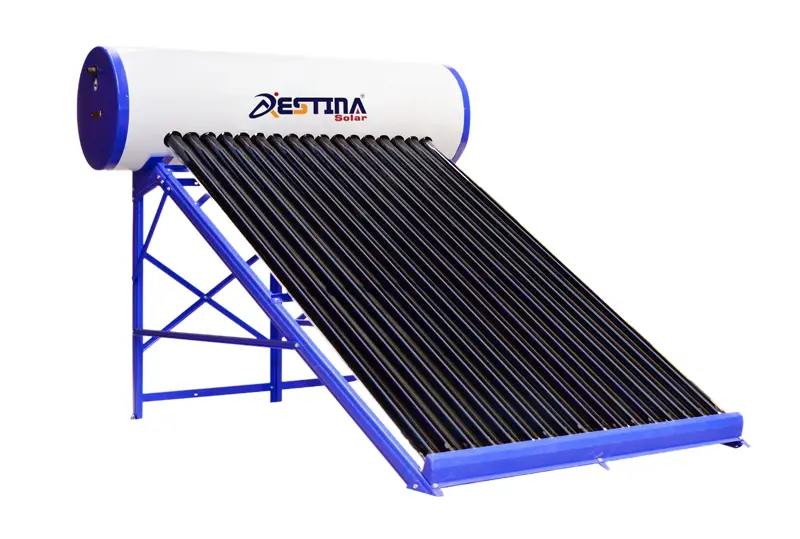

Glass Lined Model
